Quick Details

  • Type: Network Conference System, Video Conference System
  • Function: Video & Audio Conference
  • Simultaneous Interpretation: Yes
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: ITC
  • Model Number: V2.0
  • Video resolution: 1080P60/50,1080P30/25,1080P24,720P,D1,480P,CIF,QCIF
  • Low delay: less than 200ms
  • Low bandwidth: using 1M to hold 1080P HD video conference
  • Audio condec technique: G.711A/U,G.722,G.7221,G.722.1.C,G.723,iLBC,AAC,OPUS
  • Network: DDN, ISDN, ATM, SDH, VPN, Sateline Line, ADSL
  • voice priority and strategy: QoS
  • multiple screen layout: up to 16 split screen
  • multiple conference modes: director/chairman/MCU/free mode
  • Software Update: support local update and remote update
  • IP network diagnosis: PING, pack loss, delay, jitter detection

Packaging & Delivery

Packaging Details Professional Export Packaging
Delivery Time Shipped in 20 days after payment

ITC Best Buy V2.0 OEM Network Definition Conferencing Equipment Video Conference System



Product Description



System Description

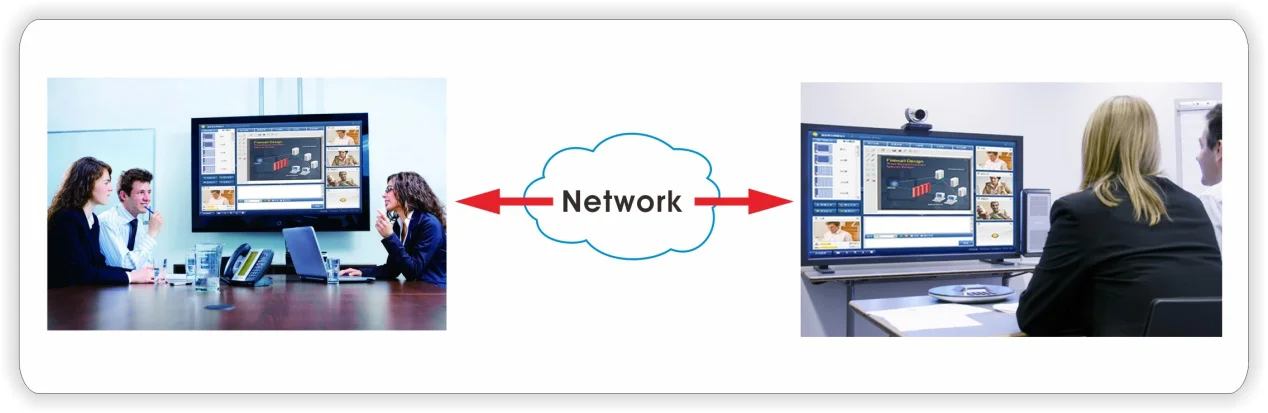

The system is a comprehensive platform of multimedia communication for government and enterprises. Rich application provides users with communication experience beyond traditional way, such as remote video audio conference, stuff training, command and dispatch, cooperative working, etc.





System Diagram





Main Products above are…

1)   TV-60MCU                     HD Video conference system MCU

2)   TV-1080P-60HT             HD Video conference terminal

3)    TV-603HC                      HD Video conference camera (1080P)

4)   TV-60R                           HD Video conference microphone





System Features

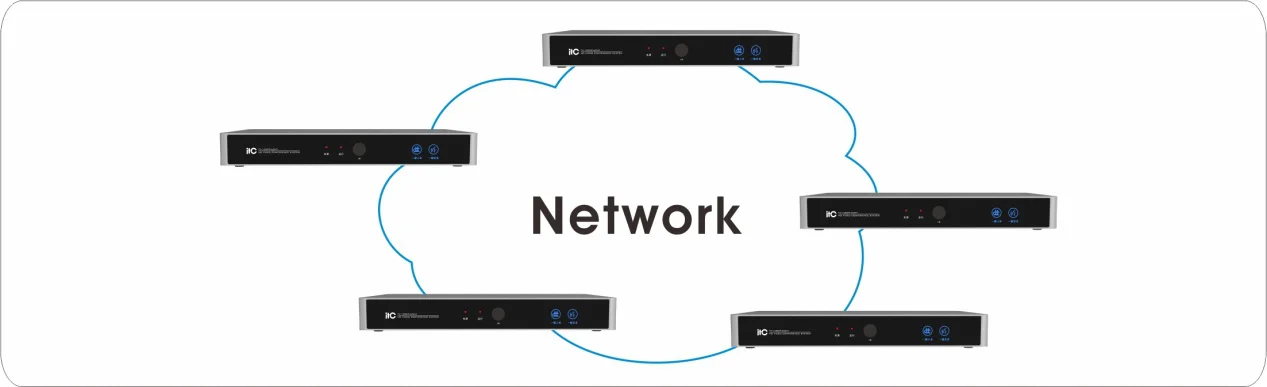

1)   Using tech. of cloud-based

Multiple combination method of MCU to achieve cooperative work and resource sharing; Even 1 of the MCU fails, the whole system could run normally



2)   Excellent video experience

To achieve industrial leading standard of 1080P/60



3)   Super low bandwidth

Only need 2M for 1080P/60; 1M for 1080P/30; 512K for 720P; So it’s cost-effective

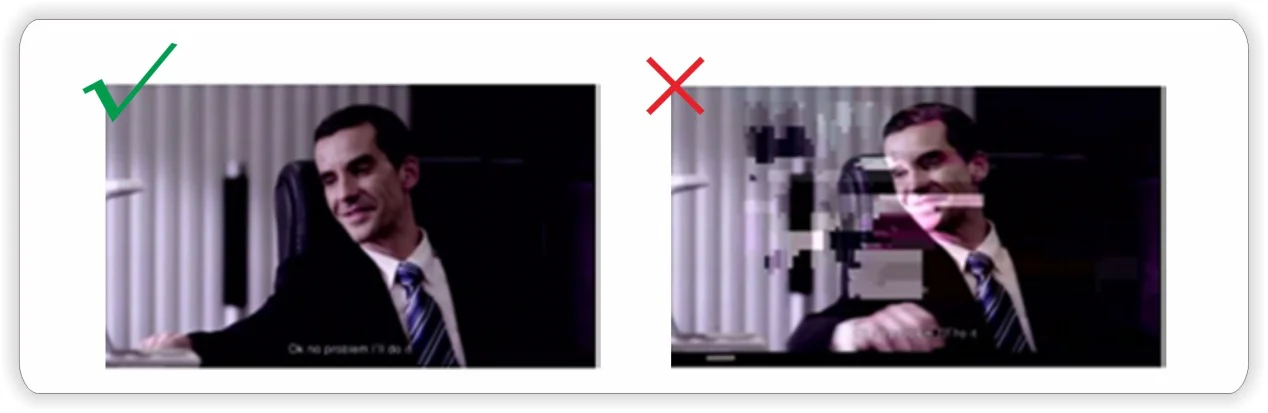

4)   Powerful adaptive capacity for network environment

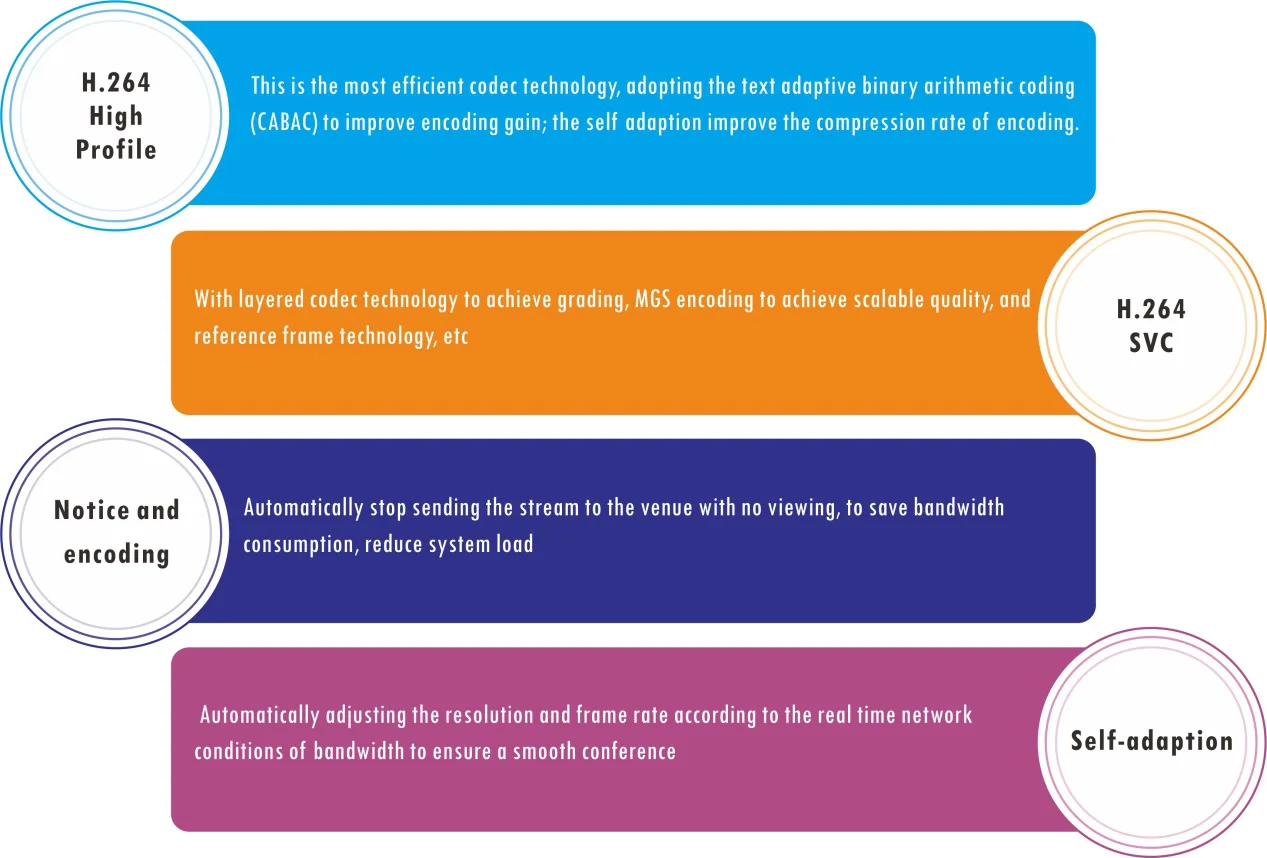

Using H.264 SVC to be adaptive with network of high packet loss; Using common network



5)   User-friendly design

To press 1 key to attend the meeting;Without professionals



6)   Flexible expandability

Multiple functions could be added, such as electronic whiteboard, files sharing, cooperative browsing, remotely voting, cooperative designing, etc.



Detailed information



HD Video conference system MCU TV-60MCU









1)   Support protocol of H. 323; support codec tech. of H.264;

2)   Support dual stream tech. of H.239; and primary/secondary streams could reach 1080P/60;

3)   To adopt cloud-based architecture for MCU; Even 1 of the MCU fails, the whole system could run normally;

4)   1 screen could be split up to 16 blocks;

5)  1Mbps for 1080P HD video conference...



HD Video conference system terminal TV-1080P-60HT



1) High Reliability: Embedded design; support continuously run for 7 x24h;
2) Easy Operation: 1 key into conference; the other key to speech;
3) Full HD: Leading industrial video experience of 1080P/60;
4) Slim Design: Light and stylish...





HD Video conference camera (1080P) TV-603HC



1.Using the most advanced Ambarella A7L DSP, 1/3 inch high quality, 5 million high-definition CMOS sensor;

2. Output 1920 x1080 ultra-high resolution image, frame rate output up to 30 frames per second;

3. 3x optical zoom automatic focus lens, 3x electronic zoom, focal length: f = 3.2mm (wide) to9.6mm (tele);

4. Multiple format video output, support 1080P30, 1080P25, 720P60, 720P50, 720P30, 720P25 HD video formats...



HD Video conference microphone TV-61R



1. Sampling rate: 4BKHz; frequency response is from 100Hz to 22KHz;

2. With internal digital sound processor;

3. With 4 digital array microphones; pickup covering 360 degree; the distance is up to 5m;

4. 1 USB port for audio input and 1 USB port of audio output...





Application

Main Product

Company Information

Guangzhou ITC Electronic Technology Limited



*  Operate a 30,000sqm factory

*  15 years of audiovisual experience

*  Integrating research, production, sales and service

*  10 major product series and 1,000+ models

*  Support OEM & ODM service





 Packaging & Shipping



*  We have very strict quality control system.

*  We promise the electronics yearly failure rate is less than 1%.

*  100% products need to be aged (full loading) at least 24 hours and tested 4 times before delivery.



Exhibitions

    By now, we have been successfully conducting both import and export activities worldwide for 10 years with suppliers and buyers.



Certifications

We have 50 software copyright and 12 patents.

Product complied with certificates:

CE Certificate

ISO9001, ISO14001, IS018001, ISO27001

CCC Certificate: China Compulsory Certification

International Standard Product Making Certificate



Successful Cases





Our Services



Pre-sale Service

* High Quality + Factory Price + Quick Response + Reliable Service, is our working faith.

* Professional foreign trade team, Reply your Alibaba enquiry and trade messager in 24 working hours.

* 30 system consultants and 10 designers to make drawing and BOQ for each tender.

* Design and BOQ response to customer within 48 hours.



Middle-sale Service

* Testing quality again before sending goods.

* Well-trained sales team for sales and basic technical service.

* Online system software demo and configuration is available.

* PDF specification sheet, system configuration template and architectural & engineer specification for documents support.

* Sending the tracking number/bill of loading, and update the situations of the goods till customers receive the goods.



After-sale service

* ITC guarantee all electronics of 3 years quality warranty.

* ITC could supply 1% wearing spare parts free of charge.

* Two English spoken technician provide online after sales service.

* Technical documents could be downloaded from website www.itc-pa.com.cn.

* All of the quality compliant shall be feedback with a solution within 48 hours.
