T-8000 Series Flexible Price 8x8 Digital Audio Matrix For PA Sound System

FOB Reference Price:Get Latest Price
US $2,000-4,000 / Sets | 1 Set/Sets audio matrix (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ITC
Model Number:
T-8000 Series
SPL(1W/1M):
94dB
Power Taps @100V:
1.5W, 3W, 6W
Power Taps @70V:
0.75W, 1.5W, 3W
Impedance:
Black: Com Red: 6.7 KΩ Green:3.3KΩ White:1.7KΩ
Max. SPL (Rated W/1M):
102dB
Frequency Response (-10dB):
110-18KHz
Finish:
Baffle: Steel ,white Grille: Aluminum ,white
Speaker Driver:
5" x 1 1.5" x 1
Cutout Size:
170mm
Dimensions:
200 x 55mm
Supply Ability
Supply Ability:
10 Set/Sets per Week audio matrix
Packaging & Delivery
Packaging Details
Full-sealing package of Products:
We adopt full-sealing bubble film+stretch film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
Port
Guangzhou, Shenzhen and HK
Lead Time :
Shipped in 15 days after payment

T-8000 Series Flexible Price 8x8 Digital Audio Matrix For PA Sound System

Your Preferred Choice for Economical PA SystemT-8000





Product Description



The matrix & paging controller is highly integrated, which is cater for multi-zone paging and multi-sources selection. It’s complete solution for multi-zone, multi-functional venues like entertainment places, large-scale hotel, sports centers, shopping mall, airport etc.



T-8000 8*8 Audio Matrix & Paging Controller Features



t-8000

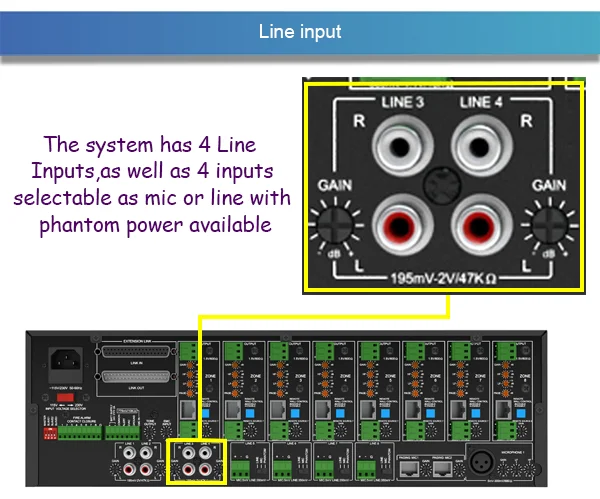

* With up to 8 music source input, 8 remote control panels, 2 remote paging consoles and 1 microphone input, all of these input couble be freely linked to different 8 zone output simultaneously.

* 1 remote paging console and 3 another remote control panels are available when expansion control, multi-zone paging and multiple audio sources is needed.

* The controller is expandable to 8*32 matrix system via CAT 5 cable to do cascade.

* Each channel is provided with individual bass/treble control and volume control. Master volume and Monitor volume control is provided as well as.

* 8 fire alarm receiving port is equipped to activate internal alert.

* 3 kinds of pre-recorded audio including alert, evacuation message and alarm are provided.

* Both paging consoles and remote control panels are linked via standard CAT 5.

* 4 hot keys are for playing BGM and do paging in the whole area directly.T-8000_01T-8000_06T-8000_04



Application



Ⅰ.Economic T-8000 PA System Solution for Hotel



T-8000 600









Ⅱ. Cost-effective T-8000 Public Address System for Supermarket





T-8000 PA System Features



1.With all basic public address function; play different background music in different areas;
2.Built in voice alarm generator input and pre-recorded message to evacuate hotel’s customers highly effective when emergency;
3.Could connect several remote paging mics (T-8000A) to broadcast from different areas on time.



Product List

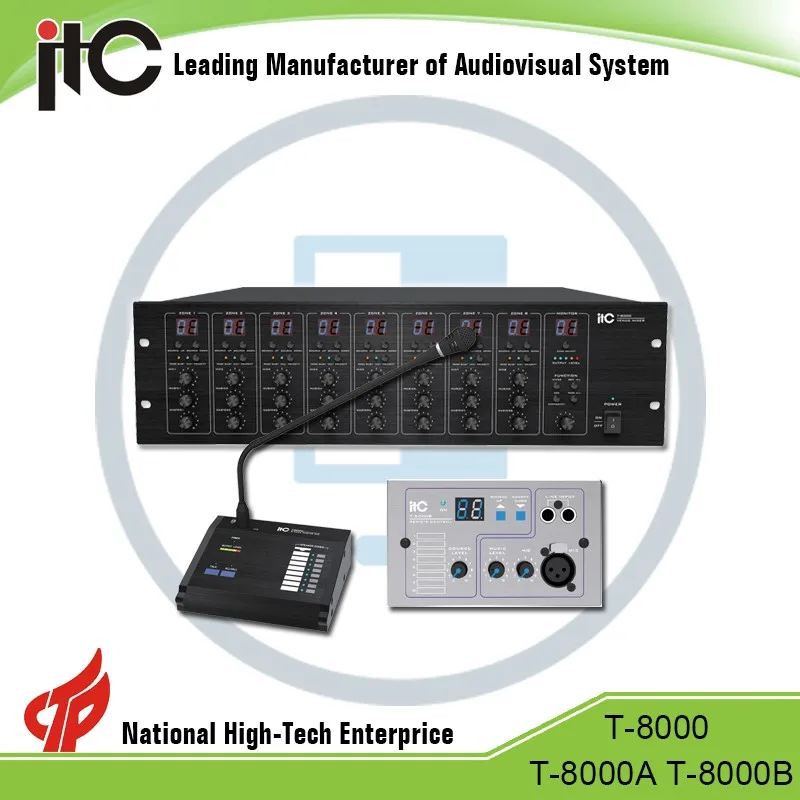

(A) System Controller     T-8000

(B) Cascading Controller     T-8000

(C) Remote Paging Microphone     T-8000A

(D) Remote Control Panel     T-8000B

(E) CD MP3 Player with Radio Tuner     T-2221

(F) 4 Channel Power Amplifier     T-4S120

(G)Ceiling Speaker     T-105



Application



Main Product



Company Information

_05 ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference systemvideo conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide. _15
