ITC T-7707 IP Network BGM Speaker Active, Chinese Active Speakers

FOB Reference Price:Get Latest Price
US $375-562.5 / Units | 1 Unit/Units active speaker (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
ITC
Model Number:
T-7707
Type:
Active
Use:
Home Theatre, Public Address
Channels:
2 (2.0)
Special Feature:
Portable
Place of Origin:
Guangdong, China (Mainland)
Network Interface:
Standard RJ45
Supported Protocol:
TCP/IP, UDP, IGMP (multicast)
Audio Format:
MP3/MP2
Sampling Rate:
8K to 48KHz
Transmission Speed:
100Mbps
Audio Type:
16Bit CD Level
Impedance:
Rated Power:
20W x2
THD:
≤1%
Frequency Response:
80Hz to 16KHz +1dB/-3dB
Supply Ability
Supply Ability:
500 Unit/Units per Week active speaker
Packaging & Delivery
Packaging Details
Full-sealing package of Products:
We adopt full-sealing bubble film+stretch film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
Port
Guangzhou, Shenzhen and HK
Lead Time :
25 Days after deposit confirmed

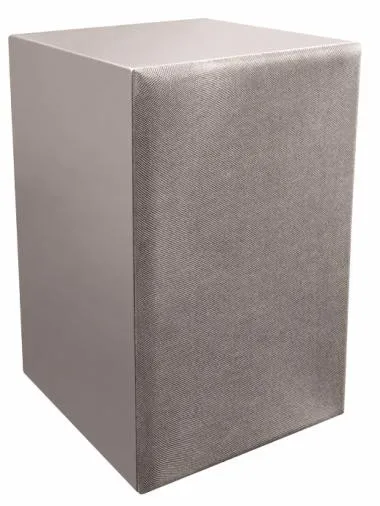

ITC T-7707 IP Network BGM Speaker Active, Chinese Active Speakers

Your Preferred Choice for Economical PA System





Descriptions





T-7707-01

Features

*  Professional integration wall mounted design, the speaker case meet sound resonance principle design, with elegant and beautiful appearance.

*  Adopt embedded computer and DSP audio processing technology, high speed industrial SCM

system chips, to ensure the start-up time is less than 1 second.

*  Build-in one network hardware audio decoding module,

it supports TCP/IP, UDP, IGMP(multicast protocol), to realize the network transfer audio signal of 16-bit CD quality.

*  Build-in 2 channel digital amplifier 2x10W,  1 channel to connect main speaker, the other

 connect assistant speaker to fulfill smooth and strong sound quality, with network volume setting.

*  With 1 AUX input, independent volume control, support offline local paging function. Support mute volume preset and background music mix output preset.

*  Build-in 2 priority settings:

                      1) Network voice alarm is prior to AUX and Network BGM.

                      2) AUX is prior to Network BGM.

*  Support DHCP, compatible with Router, PABX, bridge gateway, modem, intelnet,2G,3G,4G, multicast, unicast and any other network construction.

*  Easy extension, no limit for geographical location, no need additional management equipment, share public network to avoid extra cabling for easy installation.





Model

T-7707

Network Interface

Standard RJ45 input

Transmission Speed

100Mbps

Protocol Support

TCP/IP,UDP,IGMP(Multicast)

Audio Format

MP3

Audio Mode

16 bit CD quality

Sampling Rate

8K~48KHz

AUX input sensitivity

350mV  (unbalanced)

Frequency Response

80Hz~16KHz   +1/-3dB

Rated Power

2x20W

THD

≤1%

SNR

>65dB

Power Consumption

<50W

Circuit Protection

Overload, short circuit protection

Operating  Temperature

5℃~40℃

Operating  Humidity

20%~80% relative humidity, no condensation

Operating Power Supply

~190-240V 50/60Hz

Dimension

190x180x280mm

Net Weight

3Kg



System Diagram



77 series



Products List

Product Name

Model

Mixer Pre-amplifier

T-1S01

PA Microphone

T-521A

CD/MP3 Player with AM/FM Tuner

T-2221

IP Network Active Speaker

T-7707

IP PA & Intercom Paging Consoles

T-7702A

Alarm&Emergency Intercom Terminal

T-7703E

IP network adapter (rack-band amplifier)

T-77350 T-77500

6W Ceiling speaker

T-105

One key for help intercom terminal

T-7723





Application



Main Product



Company Information

_05 ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference systemvideo conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide. _07_09_11_13_15

FAQ

Q1: Are you manufacturer or trade company? Where?

A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.



Q2: Do you offer OEM&ODM service?

A: Yes, we do.



Q3: What's the quality standard of your products?

A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.



Q4: Which place will use ITC equipment?

A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.



Q5: What project you have done in overseas?

A: *EXPO 2016 Antalya in Turkey

*International Airpport in Tabatinga, Brazil.

*The 7th South China Sea International Conference in Vietnam.

*The Subway center of Chanakyapri in New Delhi, India .

*Department of Public Works and Highway in Philippines.



Q6: How to contact us?

A: Write down what you need and click Send, you will get the feedback soon.
