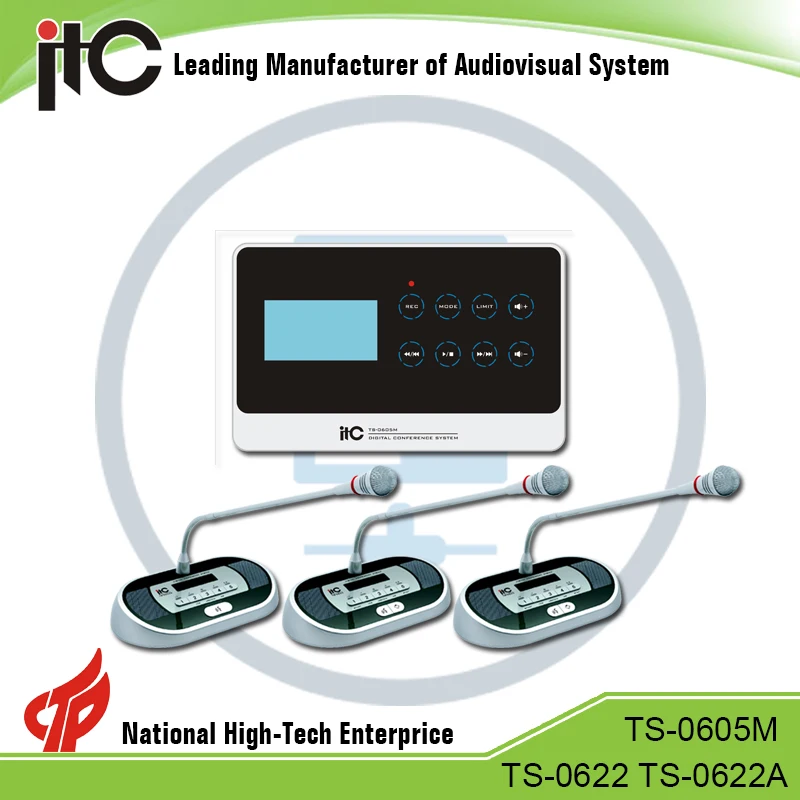

ITC TS-0605M Series Conference Room Audio System Digital Audio Conference System

FOB Reference Price:Get Latest Price
$4,500.00 - $8,000.00 / Set | 1 Set/Sets audio conference system (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Type:
Audio Conference System, Network Conference System
Function:
Translation
Simultaneous Interpretation:
Yes
Place of Origin:
Guangdong, China
Brand Name:
ITC
Model Number:
TS-0605M Series
Power Supply:
DC24V powered by controller
Connector:
8 Pins
Power Consumption:
3W
Earphone output:
9dBu,8-32Ω,3.5mm phone jack
Monitor speaker:
≤2W
Microphone Type:
High directional Polar microphone
Direction:
Cardioid pickup pattern
S/N Ratio:
> 90dB
Crosstalk:
> 90dB
Distortion:
< 0.10%
Supply Ability
Supply Ability:
100 Set/Sets per Week audio conference system
Packaging & Delivery
Packaging Details
International Standard Packaging
Port
Guangzhou, Shenzhen and HK
Lead Time :
25 Days after deposit confirmed

ITC TS-060M Series Conference Room Audio System Digital Audio Conference System

Your Preferred Choice for Economical video conference








Descriptions



Features



1) 4 kinds of conference modes

They're First-In-First-Out(FIFO), Normal, Free and Apply;

2) To limit the number of speakers
1/2/4/6 is optional, and the chairman unit is unlimited;

3) 1 host support 30 speaking units
Enough for the small scale conference room;

4) Using "Hand-in-Hand" connection way
To make installation and maintenance easier;

5) Built in digital EQ module and noise reduction module

The sound is clear and natural;

6) Support recording
for the absent or preservation;

7) Auto address writing for the speaking unit

It's more convenient to be used;





System DiagramTS-0605M



Model

TS-0605M

Microphone quantity

≤30

Channel

1CH

Frequency Response

30 ~ 20KHz

SNR

>72 dB(A)

Dynamic Range

>80 dB

Crosstalk

>80 dB

THD

<0.05%

Power Supply

24V DC

Audio Input

LINE IN : 350mV Balance

Audio Output

LINE OUT 1: 1V Balance

Output Load

>1KΩ

Static Consumption

10W

Output Consumption

70W

Connector

8 core aviation plug

Working Temperature

-10℃~+60℃

Working Humidity

20%~80% relative humidity, without condensation

Dimension

210 x 132 x 50mm

Weight

1.65kg





Product List

(A) TS-0605M     Conference System Controller

(B) TS-0622        Chairman Unit

(C) TS-0622A     Delegate Unit

(D) TS-337          Microphone

(E) TS-6P            Audio Mixer

(F) TS-200PI       Professional Amplifier

(G) TS-606A       Professional Speaker

Successful Cases



Main Product



Company Information

_05ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one stop

solution, such as Public Address System,IP System,conference systemvideo conferencing,Evacation System, professional sound system, Led video wall  and Lighting system , etc.

What's more,our system is applied to various worldclass events, such as 2008 Peking Olympic

Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 600 thousand successful cases in China and in worldwide. _07_09_11_13_15

FAQ

Q1: Are you manufacturer or trade company? Where?

A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.



Q2: Do you offer OEM&ODM service?

A: Yes, we do.



Q3: What's the quality standard of your products?

A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.



Q4: Which place will use ITC equipment?

A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.



Q5: What project you have done in overseas?

A: *EXPO 2016 Antalya in Turkey

*International Airpport in Tabatinga, Brazil.

*The 7th South China Sea International Conference in Vietnam.

*The Subway center of Chanakyapri in New Delhi, India .

*Department of Public Works and Highway in Philippines.



Q6: How to contact us?

A: Write down what you need and click Send, you will get the feedback soon.
